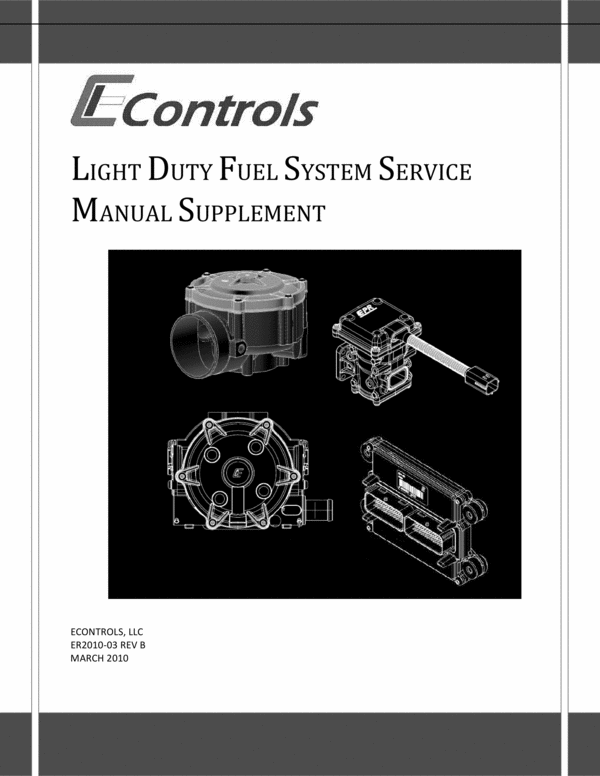

EControls Fuel System Service Manual

33.99 USD

EControls Fuel System Service Manual Supplement:
General Information Section

380 PAGES MARCH 2010

EMISSION CERTIFIED ENGINE SYSTEM SCHEMATICS
(LIGHT DUTY LPG DEDICATED SYSTEM

EMISSION CERTIFIED ENGINE SYSTEM SCHEMATICS
(LIGHT DUTY GASOLINE DEDICATED SYSTEM

EMISSION CERTIFIED ENGINE SYSTEM SCHEMATICS
(LIGHT DUTY GASOLINE & LPG BI-FUEL SYSTEM

OPEN LOOP ENGINE SYSTEM SCHEMATICS
(LIGHT DUTY OPEN LOOP LPG SYSTEM)

CLOSED LOOP ENGINE SYSTEM SCHEMATICS
(LIGHT DUTY CLOSED LOOP GASOLINE SYSTEM


This service manual supplement has been
developed to provide a service technician with
the basic understanding of the fuel systems
provided by EControls. The construction and
layout of the service manual supplement
includes the different types of fuel systems, such
as Dedicated LPG or Gasoline, or Bi-Fuel
Gasoline and LPG.

---

Keywords: econtrols fuel system service manual
File Size: 8 MBytes
